After printing out my own Mini-H Quad I splurged and purchased an Armattan CF Mini Quad/Tri Kit.

It just arrived in the mail and it’s Gorgeous. It will probably take a couple of days to assemble it but it’s going to be awesome when it’s done.

Unassembled Frame Kit


My build pics is listed below and when I am finished I will upload the maiden flight to my YouTube channel. You can also find more information on RCG here.

The links below are to vendors that you can buy the items I used in my build so you can buy them if you’d like for your build.

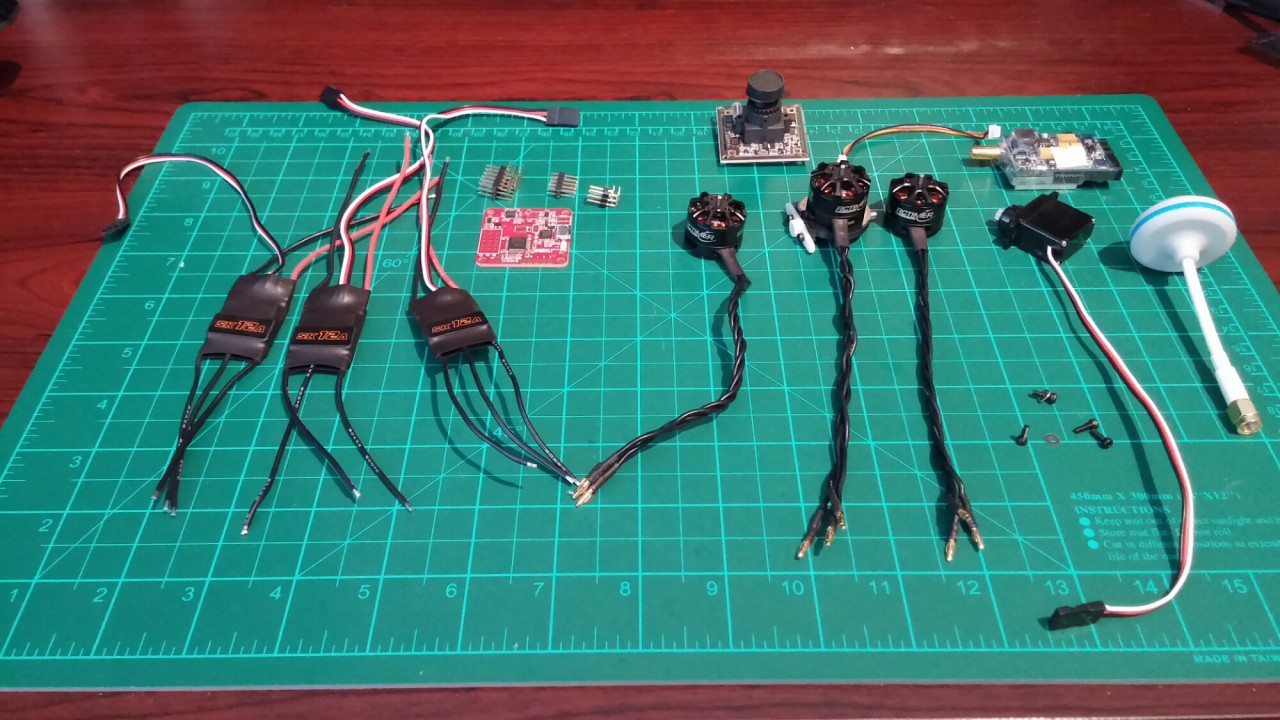

Tri Build Specs:
Quad Frame: Armattan Mini CF Quad/Tri Kit
Flight Controller: Acro Naze32
Motors: RCTimer 1806-2300KV Multi-Rotor Motor
ESC’s: RCTimer ESC12A SimonK Firmware Speed Controller
Props: HQProp 6030 (Glass Composite)
Batteries: Zippy Compact 3s 1500mah 25c  Turnigy Nano-Tech 1500mah 35C-70C

Controller Set up:
Flight Receiver: FrSky D4R-II
Flight Controller: Frsky Taranis
TX Module: Built-in

FPV Set up:
FPV Camera: 600TVL Sony PZ0420 SUPER HAD CCD  Color Board Camera w 2.1mm Lens
OSD: MinimumOSD w/ KVTeam Firmware
Video Recording: Mobius action camera with wide lens.
Video TX: Boscam TS5823 200mw 5.8ghz 32 channels
Video RX: Skyzone FPV Goggles 5.8GHz Dual Diversity 32CH Receiver With Head-Tracker
Antennas: Circular Polarized Antennae

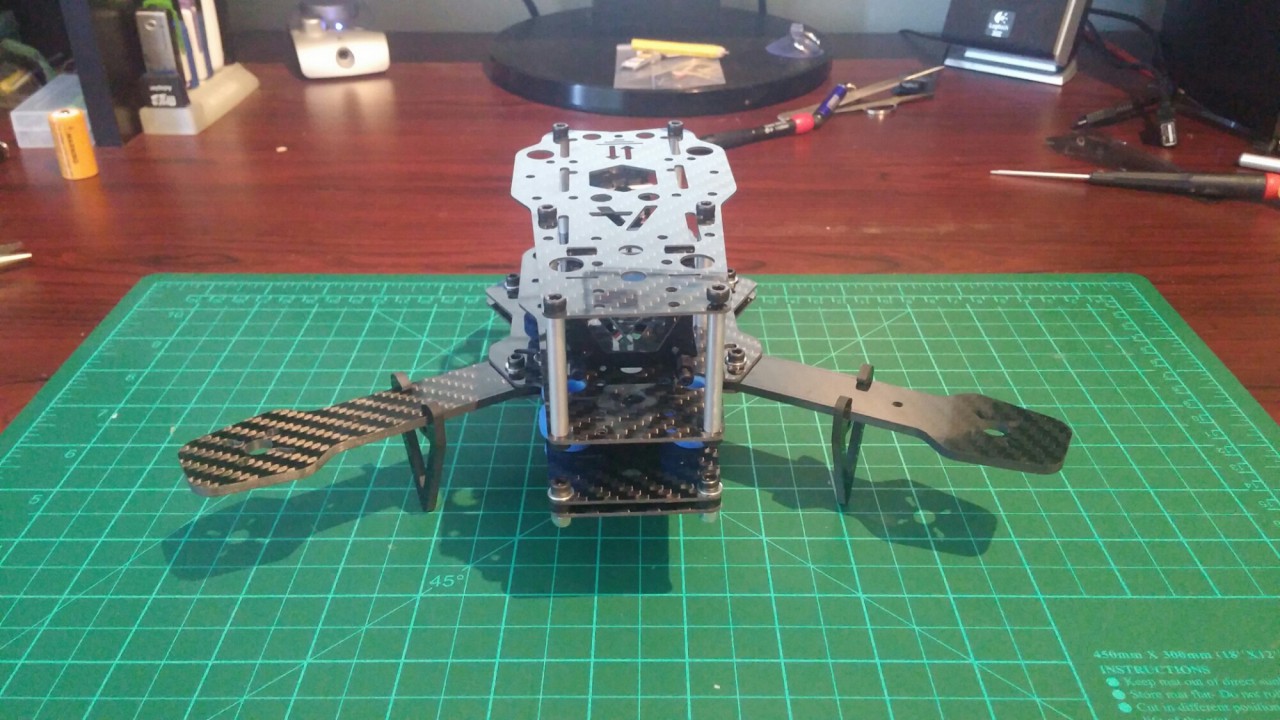

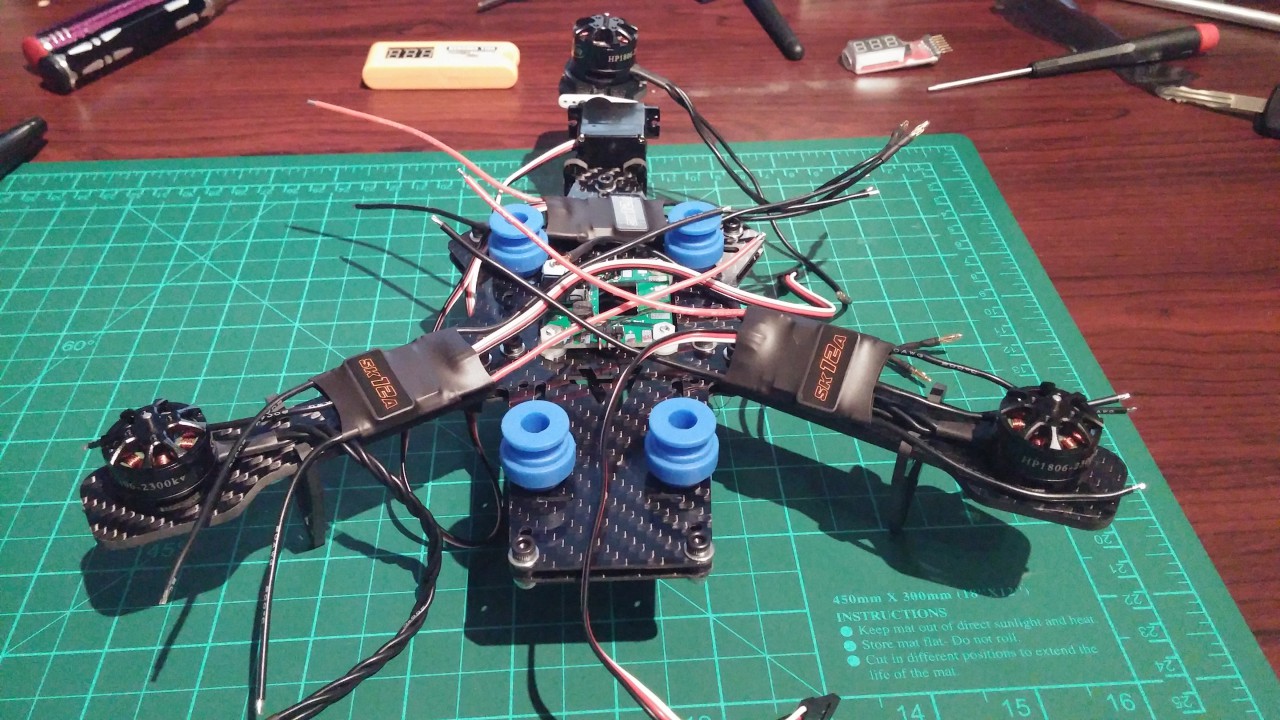

Frame Assembly

Tail Assembly

Dirty Plate Assembly











Armattan Tri
